Cross Welding Manipulator 10m Column And Boom Machine Arc Welding

Brand Name : Lemar

Model Number : HJ10*10

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : 500-10000usd

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10 set/month

Delivery Time : 20 days

Packaging Details : Export standard package

Other Name : Cross welding manipulator

Column effective stroke : 10m

Boom effective stroke : 10m

Welding : Surbmerged arc welding/MIG welding/TIG Welding

Suitable tanks diameter : 700-8500mm

Optional : Welding rotator or welding positioner

Duration : 20 days

Monitor : Optional

Movable : Yes or no/Customized

Trolley : Optional

Contact Now

HJ10×10 Internal External Seam Welding Manipulator
The HJ10×10 Internal External Seam Welding Manipulator is designed for heavy-duty cylinder and pipeline fabrication with vertical and horizontal coverage of 10 meters each. This automated welding system precisely delivers and moves the welding torch along weld seams to achieve high-quality automated welding.
Welding Capabilities
  • Longitudinal Seam Welding: Cross arm extension and retraction completes straight welds on cylinders or plates
  • Circumferential Seam Welding: Workpiece rotation using welding rollers or positioner completes circumferential welds
  • Inner and Outer Seam Welding: Cross arm extends into cylinders for inner seams and retracts for outer seams
  • Multi-Station Coverage: Trolley movement and column rotation enable coverage of multiple workshop stations
Technical Specifications
Model Column Effective Stroke Boom Effective Stroke
HJ-2020 2000mm 2000mm
HJ3030 3000mm 3000mm
HJ4040 4000mm 4000mm
HJ4050 4000mm 5000mm
HJ5050 5000mm 5000mm
HJ6060 6000mm 6000mm
HJ7070 7000mm 7000mm
HJ8080 8000mm 8000mm
HJ10×10 10m 10m
Additional Specifications
  • Lift Speed: 600mm/min
  • Expansion Speed: 100-1000mm/min
  • Trolley Type: Fixed or Movable
  • Welding Monitor: Available
  • Welding Source: TIG / Submerged Arc Welding / MIG Welding
  • Trolley: With or Without
  • Rotation: Electric Type or Manual type according to customer request
  • Welding Tracking: Customized
  • Voltage: 380V or Customized

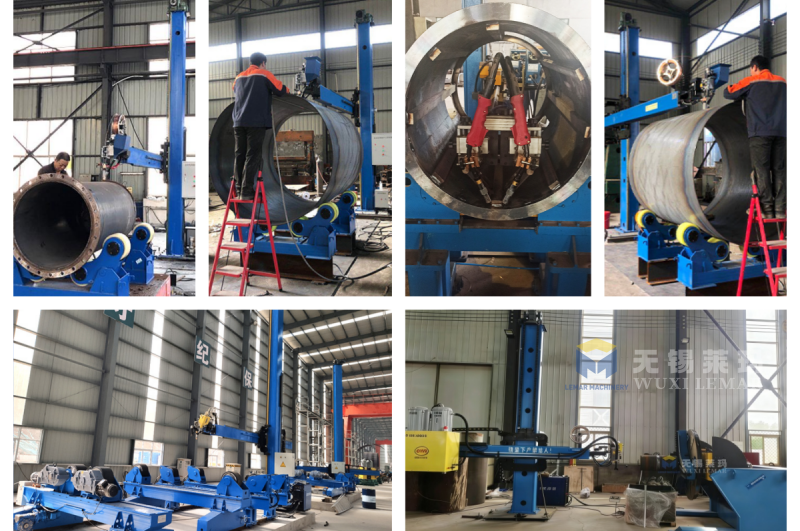

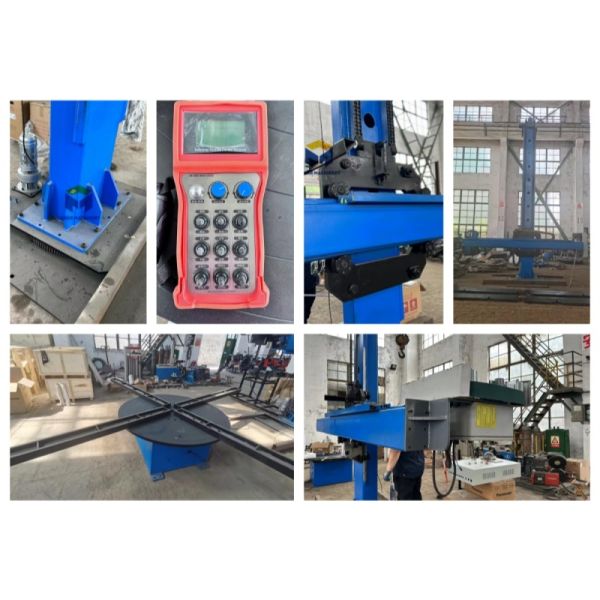

Cross Welding Manipulator 10m Column And Boom Machine Arc Welding Cross Welding Manipulator 10m Column And Boom Machine Arc Welding
