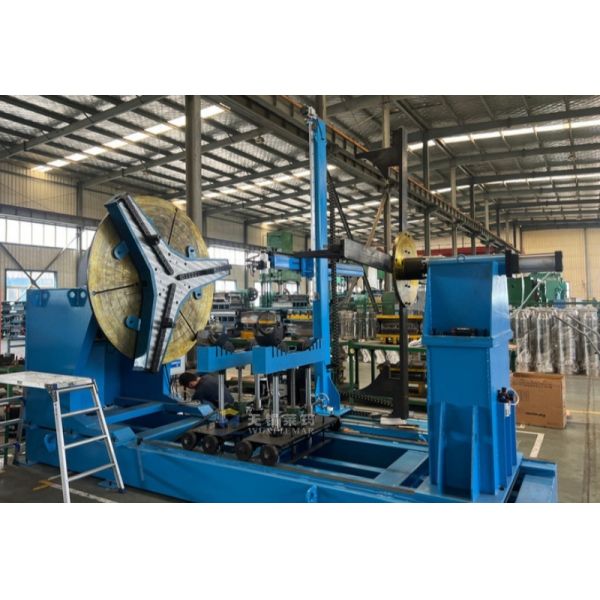

Submerged Arc Manipulator Welding 3000mm Column 4000mm Boom Welding Column

  • 1
  • 2
  • 3

Brand Name : Lemar

Model Number : HJ3030

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : 500-10000usd

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10 set/month

Delivery Time : 20 days

Packaging Details : Export standard package

Other Name : Cross welding manipulator

Column effective stroke : 3000mm

Boom effective stroke : 4000mm

Welding : Surbmerged arc welding/MIG welding

Suitable tanks diameter : 700-4000mm

Optional : Welding rotator or welding positioner

Duration : 20 days

Monitor : Optional

Movable : Yes or no/Customized

Trolley : Optional

Contact Now

HJ3040 Submerged Arc Welding Manipulator for Cylinder Vessel Pipes and Tank
Why Choose the HJ3040 Submerged Arc Welding Manipulator?
  • Eliminates heavy physical labor: Traditional manual welding requires workers to maintain uncomfortable positions for extended periods. Our manipulator ensures stable mechanical movement with matched welding speed and wire feed.
  • Precision alignment: Front-end cross-shaped fine-tuning mechanism allows precise torch alignment via remote control. Eccentric shaft guide wheel design eliminates rail gaps for stable movement.
  • Safety protection: Lifting mechanism features ratchet anti-fall device that locks instantly during power failure, protecting both equipment and workpiece.
  • Convenient operation: Handheld remote control box enables one-handed control of all functions (movement, lifting, extension, welding start/stop) with sensitive response and ±0.1mm positioning accuracy.
Key Features & Capabilities
  • Track length: Customizable to workshop length, up to tens of meters
  • Telescopic boom: Adjustable length to adapt to special workpieces
  • Control methods: Standard wired remote control with optional wireless remote or PLC touchscreen control
  • Welding power supply: Compatible with customer's existing equipment or recommended brands (Lincoln, Miller, Aotai, etc.)
  • Optional accessories: Flux recovery system, wind shield, monitoring camera, and more
Submerged Arc Manipulator Welding 3000mm Column 4000mm Boom Welding Column
Technical Specifications
Model HJ-3040
Column Effective Stroke 3000mm
Boom Effective Stroke 4000mm
Welding Source TIG/Submerged Arc Welding / MIG Welding
Trolley With or Without
Rotate Electric Type
Welding Tracking Customized
Voltage 380V or Customized
Other Optional Welding Positioner or Welding Rotator
Have questions about the HJ3040 Submerged Arc Welding Manipulator? Our technical experts are ready to assist you with detailed specifications and application guidance.
