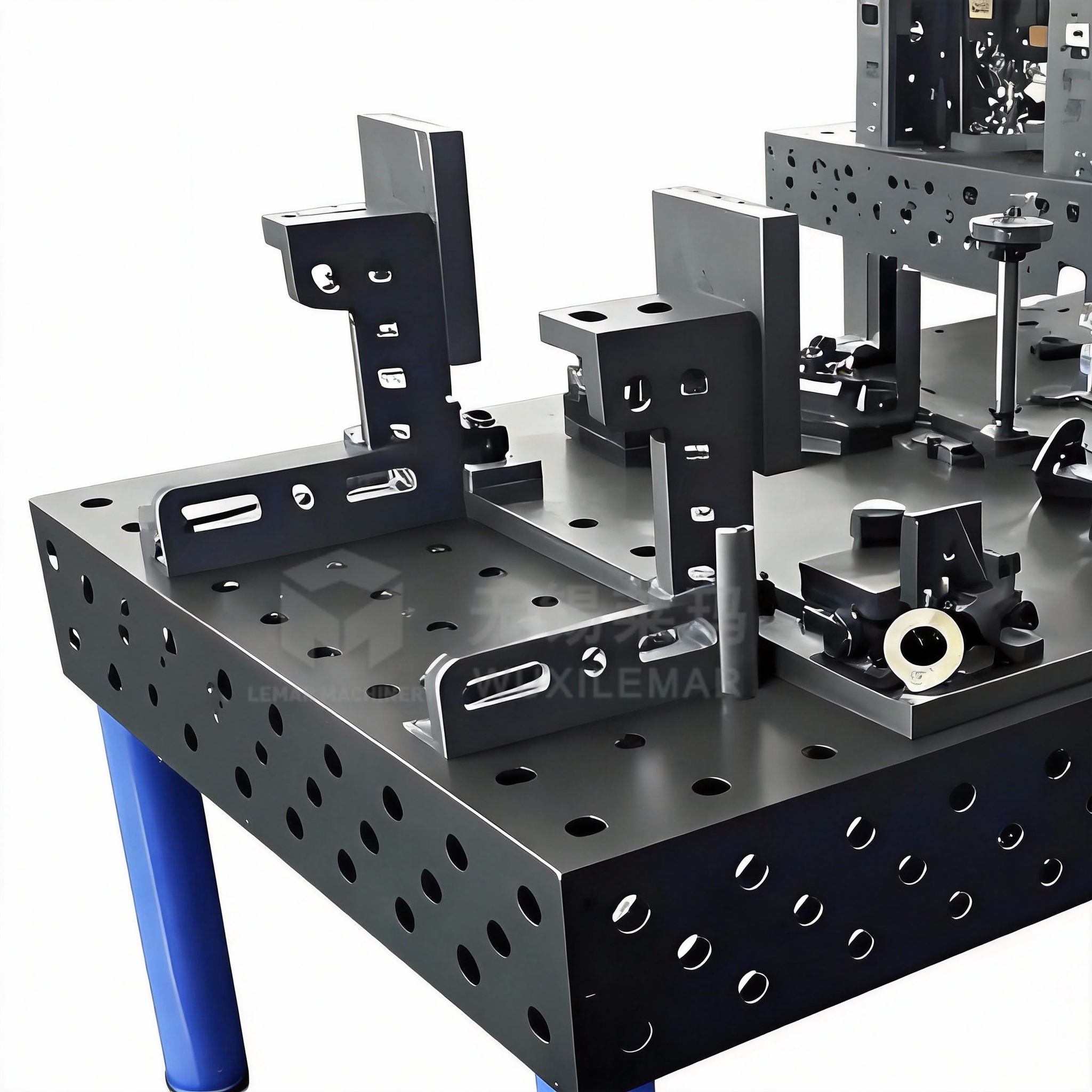

16 Series Welding Table with Scratch-Resistant Steel Top

  • 1
  • 2
  • 3

Brand Name : LEMAR

Model Number : D16

Certification : CE

Place of Origin : WUXI

MOQ : 1

Price : 500-1000USD

Payment Terms : L/C,D/A,T/T,Western Union,D/P

Supply Ability : 500 units/month

Delivery Time : 15-25 work days

Packaging Details : 3000*2000*300mm

Surface hardness : HV500-800

Flatness : ±0.03mm/m²

Annual drift accuracy : ＜0.008mm

Single unit with uniform load : ≤2.5t

Localized concentrated load : ≤500 kg per point

Material : Q355

Tabletop dimensions : 1500×1000mm

Standard height : 620mm

Warranty period : 1 year

Contact Now

16 Series Welding Table with Scratch-Resistant Steel Top

The 16 Series Welding Table with Scratch-Resistant Steel Top is a lightweight, modular welding fixture designed for small and medium-sized precision welding, small-batch, multi-variety production, and high-frequency clamping operations. Its core features include a φ16mm standard hole system, a 50×50mm hole spacing, and a high-hardness, scratch-resistant steel tabletop. Unlike conventional 16 Series welding tables, this model emphasizes scratch and wear resistance, splash protection and easy cleaning, precise positioning, and lightweight, easy operation.

Tabletop dimensions 1500×1000mm
Operating temperature -10℃~50℃
Material Q355
Thickness 12 (standard)
Surface treatment Plasma nitriding + BAR anti-slag coating
High-temperature resistant coating ≤600℃

16 Series Welding Table with Scratch-Resistant Steel Top

16 Series Welding Table with Scratch-Resistant Steel Top

Core structure
  • High-Hardness, Scratch-Resistant Material: The workbench surface is made of high-strength, wear-resistant steel, subjected to a dual treatment of overall quenching and plasma nitriding. The surface hardness reaches HV500-800, far exceeding that of ordinary cold-rolled steel workbenches. It remains free from scratches and dents even with frequent clamping, fixture insertion/removal, and workpiece movement, and the surface flatness does not degrade over time.
  • Anti-Adhesion and Easy Cleaning: The workbench surface is coated with a special scratch-resistant and anti-adhesion coating. Welding spatter does not easily adhere, eliminating the need for strong grinding. It can be quickly cleaned with a scraper or wire brush, preventing damage to the surface during cleaning and significantly reducing daily maintenance workload.
  • Rust-Proof and Corrosion-Resistant: The workbench undergoes passivation and pore sealing treatment, combined with hard chrome plating of the hole system. It remains rust-free even in humid workshop environments and after contact with welding coolants, adapting to various working environments and offering a service life 2-3 times longer than ordinary 16-series workbenches.
  • Precision Machining: The workbench is precision machined on five sides using CNC technology. Hole position tolerance is ±0.02mm, and flatness reaches ±0.03mm/m², ensuring precise positioning and welding consistency for small and medium-sized workpieces.
Advantages in adaptability and operational efficiency
  • Wide range of applications: Suitable for multiple processes including precision welding, workpiece assembly, and small-scale grinding, eliminating the need for additional workbenches and increasing equipment utilization.
  • Ideal for high-frequency operations: The scratch-resistant surface accommodates frequent insertion and removal of fixtures and repeated workpiece clamping, solving the positioning deviation problems caused by scratches on ordinary surfaces and reducing the frequency of accuracy calibration.
  • Cost-effective and easy to maintain: Features no complex or easily damaged structures; daily maintenance only requires cleaning splashes and applying rust-preventive oil to the hole system; readily available spare parts (locating pins, clamp springs) ensure low maintenance costs, typically only 0.5%-2% of the original equipment value, far lower than traditional dedicated tooling.
Key points regarding purchasing and after-sales service
  • Trade and Logistics: Supports global trade terms such as FOB/CIF/EXW/DDU/DDP, optimized for compact container loading to reduce sea freight costs; uses shockproof and rustproof packaging, with scratch-resistant protective
  • film on the tabletop, and precision parts are individually sealed.
  • Payment Methods: Supports L/C, T/T, and deferred payment; small and medium-sized customers can enjoy flexible payment terms, and long-term partners receive annual rebates.
  • Warranty Service: 1-year warranty on the main structure, 18-month exclusive warranty on the scratch-resistant steel tabletop, and 6-month warranty on standard parts; free on-site precision calibration and 24/7 online technical support during the warranty period.
